Class F Epoxy Fabric/Polyester Film Dry Mica Tape Used for VPI

Product Deccription:

It is made of special mica paper as the base, epoxy resin as the adhesive and alkali-free glass fabric or polyester film as the reinforcement material, then varnished, baked, rolled and cut. Good flexibility at room temperature, excellent technology property and tight winding. No powder flying during the winding and bonding when opening the disk.

Good compatibility with solvent-free impregnating epoxy resin treated by VPI. Good model ability and excellent mechanical and electrical properties after curing. The properties after curing are depends on the VPI resin. The storage property is stable at room temperature. Used for VPI insulating treatment for Class F 6.0kV and above motors.

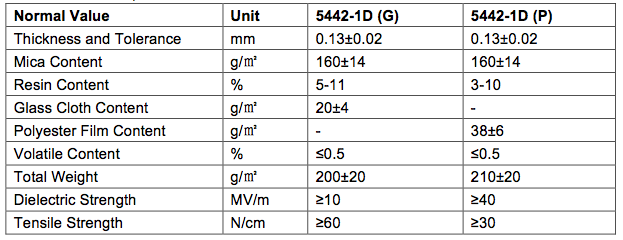

Main technical requirements:

The above technical data is general at home. We can supply different products according to the needs of users.
